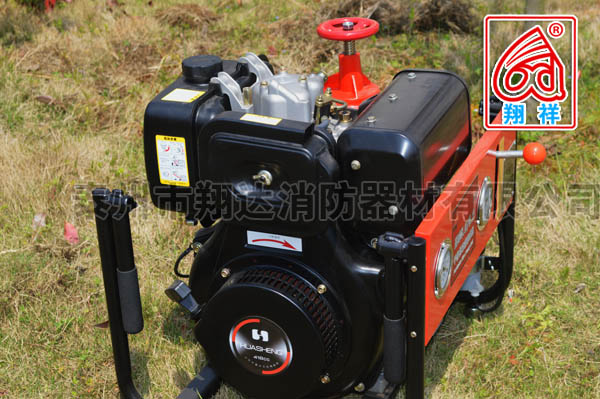

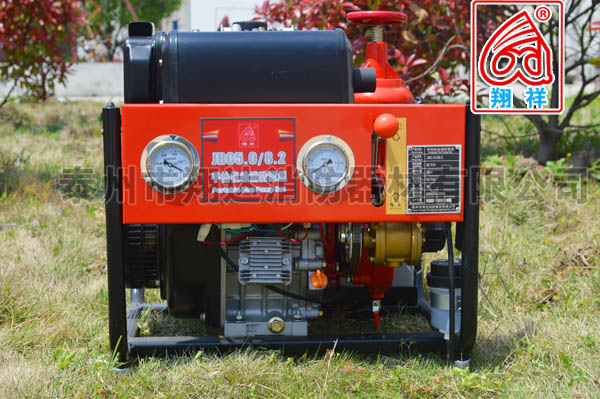

揚州JBC5.0/8.2手抬機動消防泵組
汽油機形式：
缸徑×行程：
排量：
| 型號名稱Name | JBQ5.0/8.2手抬式機動消防泵組Portable Fire Pump Set |
| 發動機型式Engine Type | 四沖程單缸風冷4-Stroke Single-Cylinder With Air-cooled |
| 大功率Power Output | 8.6KW |
| 啟動方式Starting Model | 手電兩用Electic and recoil / 自回式手拉繩啟動 Recoil |
| 引水方式Suction Model | 排氣自吸引水Self-absorption By Exhaust |
| 吸深Suction Height | 7m |
| 大流量Max Flow Rate | 45T/H |
| 額定流量Rated Flow | 29.5T/H |
| 額定壓力Rated Power | ≥0.5Mpa |
| 揚程Lift | 53m |
| 進水口徑Inlet Diameter | 65mm |
| 出水口徑Outlet Diameter | 65mm |
| 引水時間Time | 40s |
| 質量N.W | 55/43kg |
| 體積Volume | 560×520×550mm |
